Epoxy & Polyurethane Tooling Boards
We are not only suppliers of tooling boards - we are also end users, so we know what characteristics are important & which products are best suited to particular end user requirements. Base Materials in the UK meet our high demands for performance, consistency & value for money, which is why we choose to use & stock their products.
Our experience of machining & processing Base Materials tooling boards allows us to help you select the right tooling board for your project, based on your performance & budget parameters. Our team are on hand to support you from initial concept stage to choosing the best tooling material for your project, 3D modelling and tool machining if required.
BE978 Epoxy Tooling Board
BE978 Epoxy Tooling Board is a market-leading, medium-temperature, premium epoxy tooling material, designed to provide reliable, consistent performance. BE978 is known for its superior surface finish and excellent dimensional stability.
Suitable for use up to 145 °C, BE978 can be used for direct to part manufacturing. BE978 has an inert surface and is chemically compatible with prepregs.
EXCELLENT SURFACE STRUCTURE
Low CTE
EXCELLENT DIMENSIONAL STABILITY
EASY TO MACHINE
INERT SURFACE
BOARD SIZES - 1524mm x 608mm x 50mm

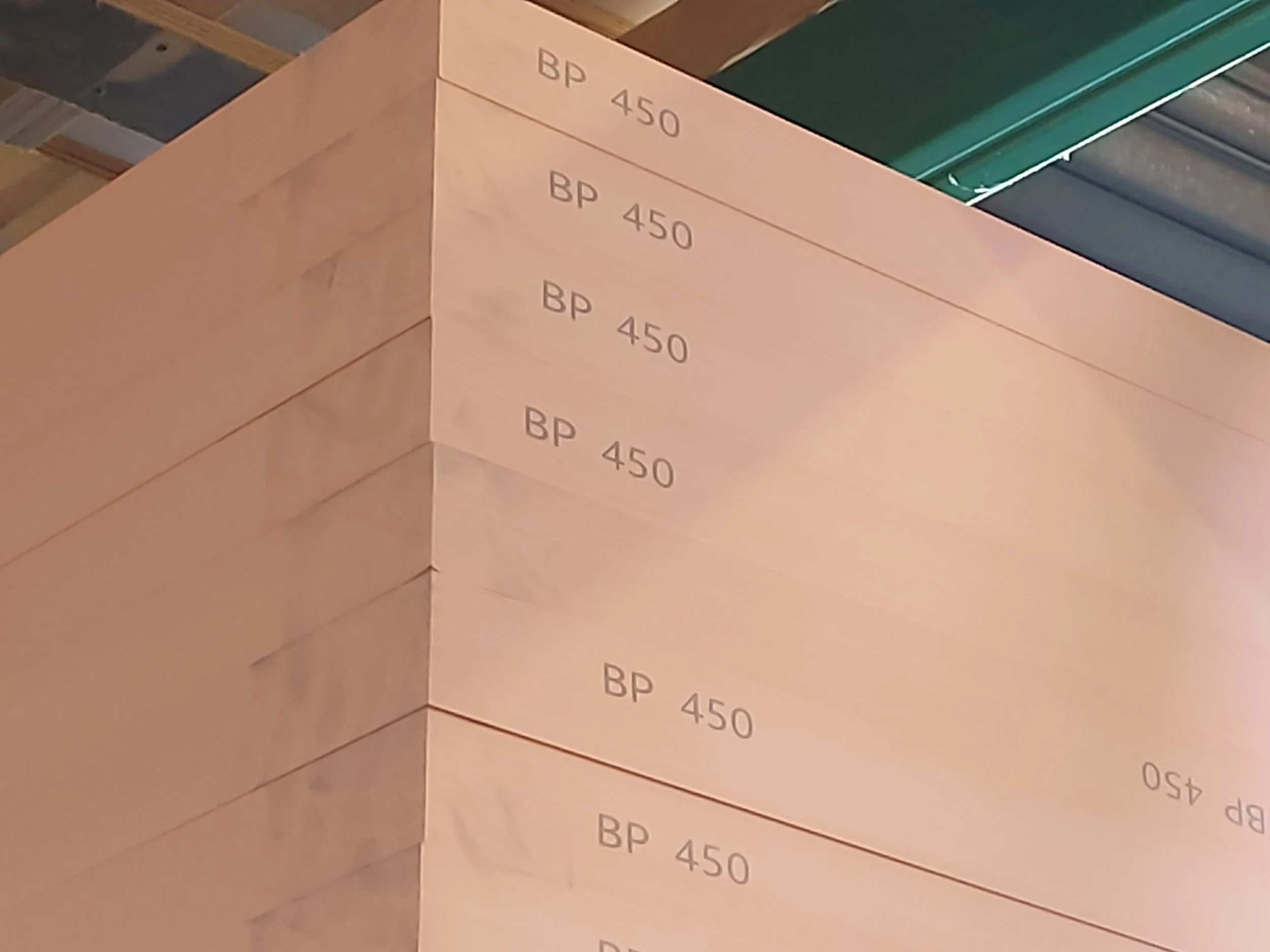

BP450 Polyurethane Tooling Board
BP450 is a low-density polyurethane (PU) tooling material designed for the manufacture of master models, prototype models, production tools and plugs specifically used in glass-reinforced plastic (GRP) and fibre-reinforced plastic (FRP) applications. This material is well suited to the manufacture of foundry patterns, trimming fixtures & film/theatre props.
BP450 produces a very good surface finish off the machine & is very easy to machine & shape
Suitable for use up to 70 °C, BP450 is a low cost alternative to Epoxy tooling board where elevated temperature curing is not a prerequisite.
GOOD SURFACE FINISH
Operation temperature up to 70°C*
LOW Dust & EASY machining
BOARD SIZES - 1500mm x 500mm x 50mm
BP700 Polyurethane Tooling Board
BP700 is a medium-density, polyurethane (PU) tooling material, designed to provide an excellent surface finish for a wide range of applications including the manufacture of patterns and master models, jigs and fixtures, vacuum forming and thermoforming applications.
Suitable for use up to 70C. Ideal for production of plugs for infused carbon female moulds.
VERY GOOD DIMENSIONAL STABILITY
EXCELLENT SURFACE FINISH
EASY TO MACHINE
BOARD SIZES - 1524mm x 608mm x 50mm
